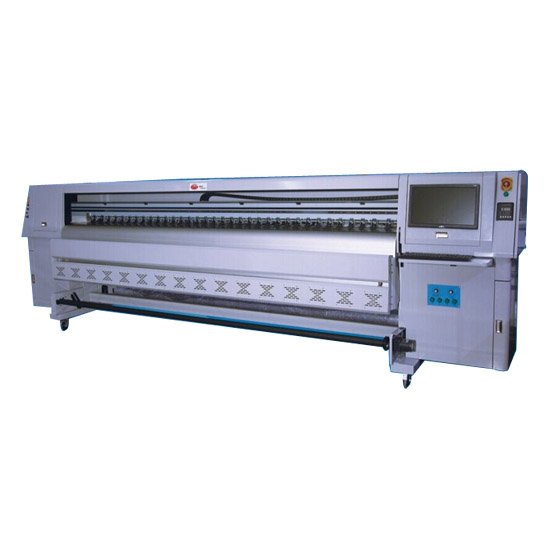

YASELAN Solvent Printing Machine X9
Deskripsi
| Model | YSL-X9 | ||
| Printing head | Konica 512i 30pl | ||
| 8 4 | |||
| Color | 4 | ||
| Print Resolution | 720dpi 240dpi 360dpi | ||
| Print Head Hight(Adjustable） | 1-10mm | ||
| Print Width | 3.2m | ||
| Print Speed | 2pass | 280㎡/h high speed(8H) 140㎡/h high speed(4H) | |
| 4pass | 190㎡/h high speed(8H) 95㎡/h high speed(4H) | ||
| 6pass | 100㎡/h high speed(8H) 50㎡/h high speed(4H) | ||
| Ink type | Solvent ink | ||
| Color | C M K Y | ||
| Media Type | PVC FLEX,VINYL,ONE WAY VISON AND SO ON | ||
| Image File Format | PSD/DWG/HPG/HGL/PLT/PS/EPS/2PS/FJB/JPG/TIF/BMP | ||
| Print Workflow | Print job from control panel/Direct print job from PC | ||
| RIP while printing | |||
| Print Interface | USB | ||
| RIP Software RIP | Maintop,Photoprint,Ultrprint | ||
| Workstation/Operation System | WindowsXP Home or Professional WindowsXP | ||
| Configuration/CPU | Pentium4，≧1500MHz | ||
| Environment | Memory | 2G | |
| Free HD | 80G 250G | ||
| Humidity | 45-75%CH | ||
| Temperature | 20-27℃ | ||
| Machine size L*W*H（m） | 5*1.2*1.7 | ||
| Gross Weight （KG） | 950KG | ||
Mohon Hubungi Customer Service untuk Harga & Konsultasi lebih lanjut
